Overview

UDX 2MIC is a pre-amplification unit for two microphones.
  • It features switchable 48V phantom power controlled from the surface touch screen.
  • On the mixer, it is assigned to two channels, which are configured to operate in the same way as channels assigned to rear panel inputs.

​
Connections

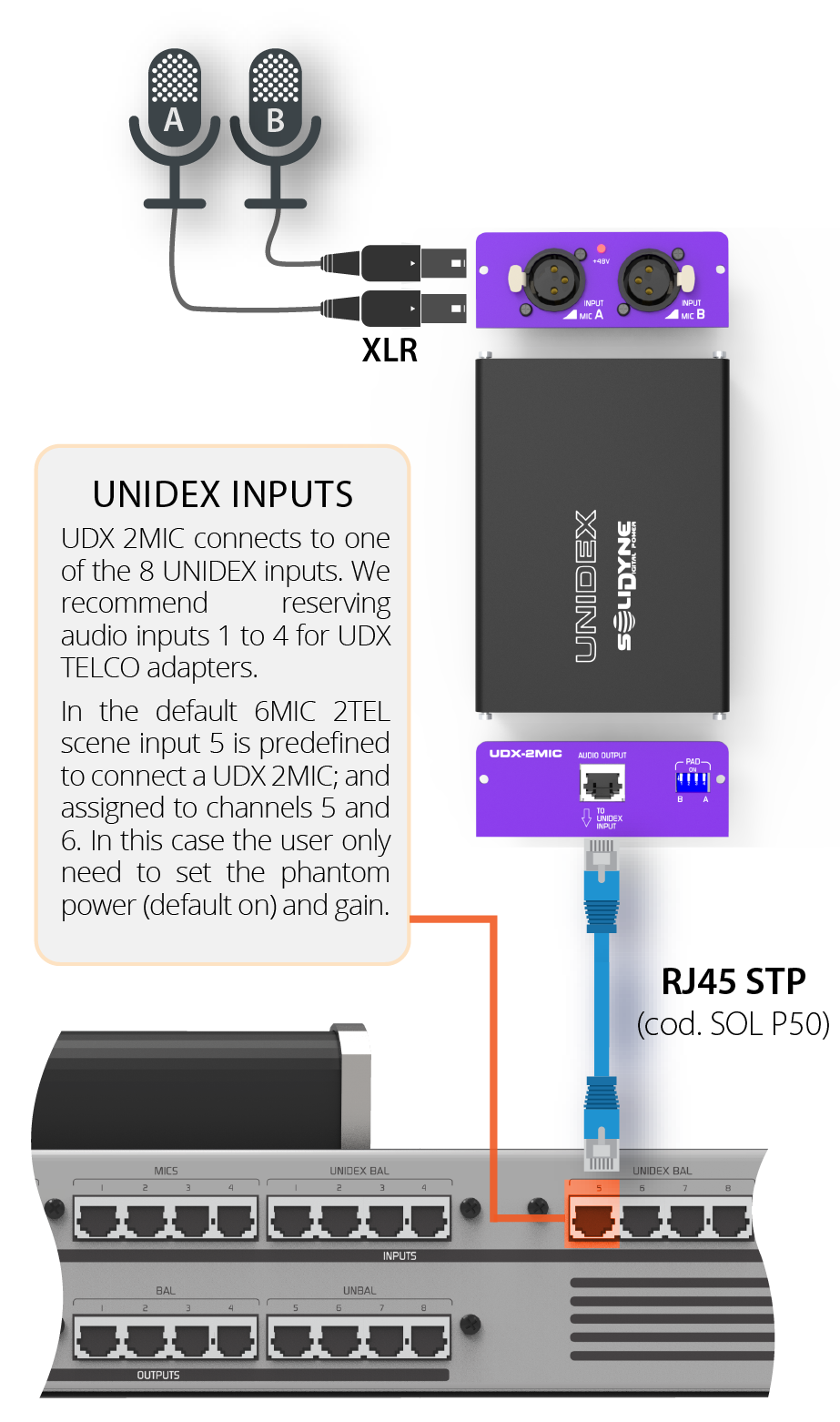

UDX 2MIC connects to the console through a UNIDEX input, using a straight-through STP RJ45-RJ45 cable (SOL-P50 or SOL-P25 cables). Next wiring diagram shows the connection to UNIDEX UX24. UDX2MIC conections diagram
The cable connecting UDX 2MIC to the UNIDEX input carries voltage when 48V phantom power is enabled. Turn off the phantom power before unplug it.
We recommend reserving inputs 1 to 4 for TELCO (UDX 2TEL; TEL BT; 2BLT) since these adapters use the outputs connectors aligned with inputs 1 to 4.

​
Microphones

Microphones connect to the UDX 2MIC adapter using standard XLR cables. If the microphones require phantom power, this can be activated later from the console. UDX 2MIC features 10dB input attenuation switchable via dip-switches. Switches labeled A and B control attenuation for inputs A and B respectively (center switches are not used). UDX2MIC input attenuation

​
UNIDEX Input Configuration

Below is the configuration process from the console touch screen. This can also be done similarly through the web control interface.
  1. On the main screen, access the SETTINGS option.
  2. Turn the encoder to select the “L” channel of the UNIDEX input where UDX 2MIC is connected. “L” corresponds to channel A of UDX 2MIC while “R” is channel B.
  3. Tap MODE to select MONO.
  4. In the UDX TYPE menu select: 2MIC.
  5. If required, enable 48V power. This will activate for both inputs.
  6. On the screen, tap ASSIGNED TO CHANNEL menu to assign a CHANNEL to the input. If you choose a channel that already has an input assigned, a warning will appear. If you continue, the input on that channel will be replaced.
  7. Press BACK to return to main screen.
  8. The next step will be to configure the channel.
The layout and shape of the controls shown below may vary. This does not affect the configuration procedure.

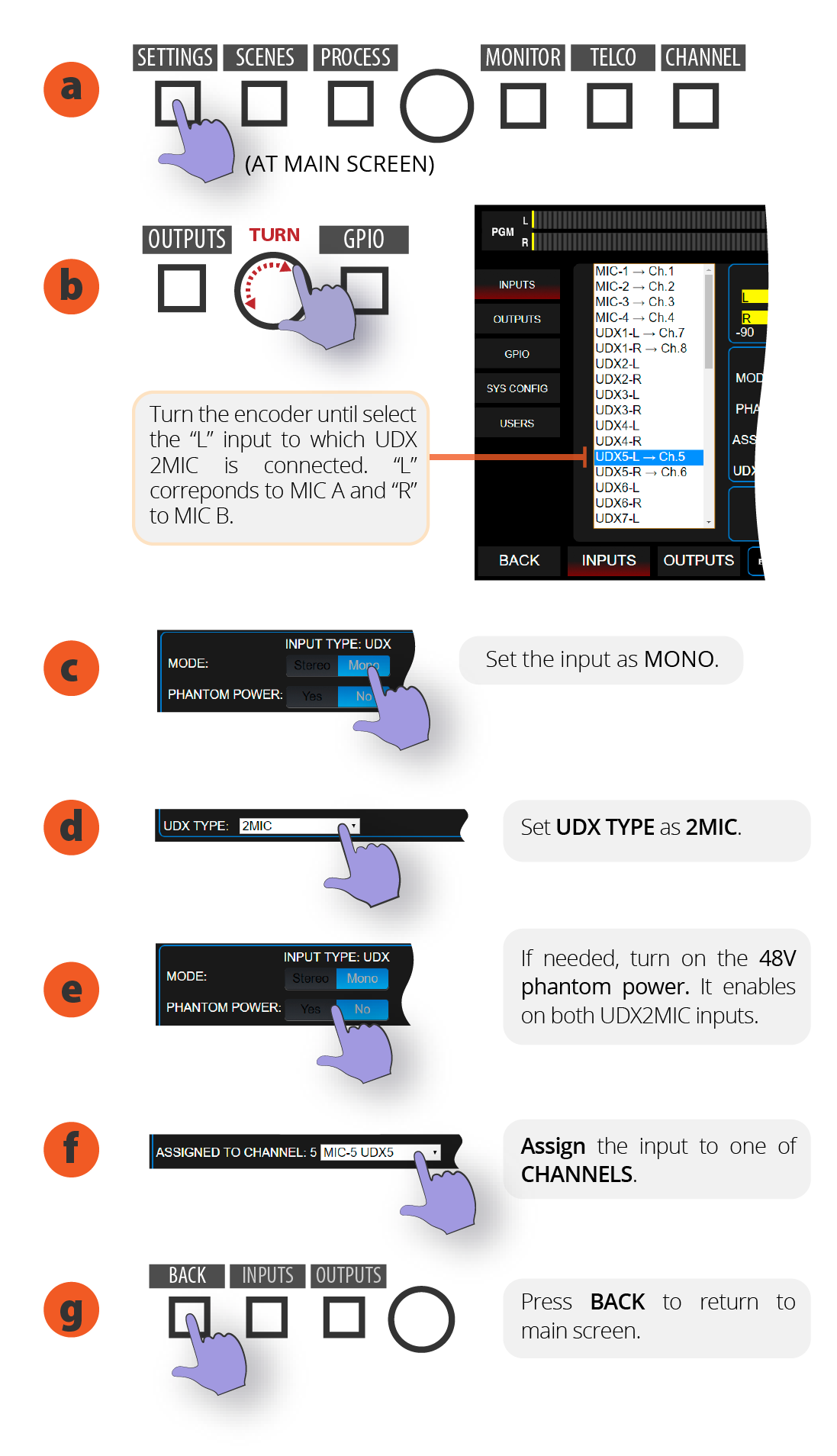

UDX2MIC INPUT SETTINGS
You can analyze the configuration of one of the preset scenes that have channels configured for UDX 2MIC as a reference.

​
Channel Configuration

  1. On main screen, press CHANNEL. CUE buttons change to SELECT mode.
  2. Press the CUE/SELECT button on the channel to configure. The console exits SELECT mode and shows the CHANNEL screen for the selected channel. To select virtual channels, turn the encoder and press to confirm.
  3. Under MODE, expand the menu and select MIC.
  4. To edit the label, touch the name. An on-screen keyboard will appear.
  5. Turn encoder to select GAIN. Press encoder to edit the value.
  6. Adjust the GAIN of the input so that when speaking into the microphone, peaks reach -9dBfs on the level indicator.
  7. Touch the screen to define ACTIONS for that microphone channel. Actions allow:
    • Link to Master MIC A/B button
    • Link to STUDIO A/B (determines which “ON AIR” light activates)
    • Define CUE mode
    • Define the channel as Control Room microphone (determines which monitoring is muted).
  8. Save the SCENE to record the changes.

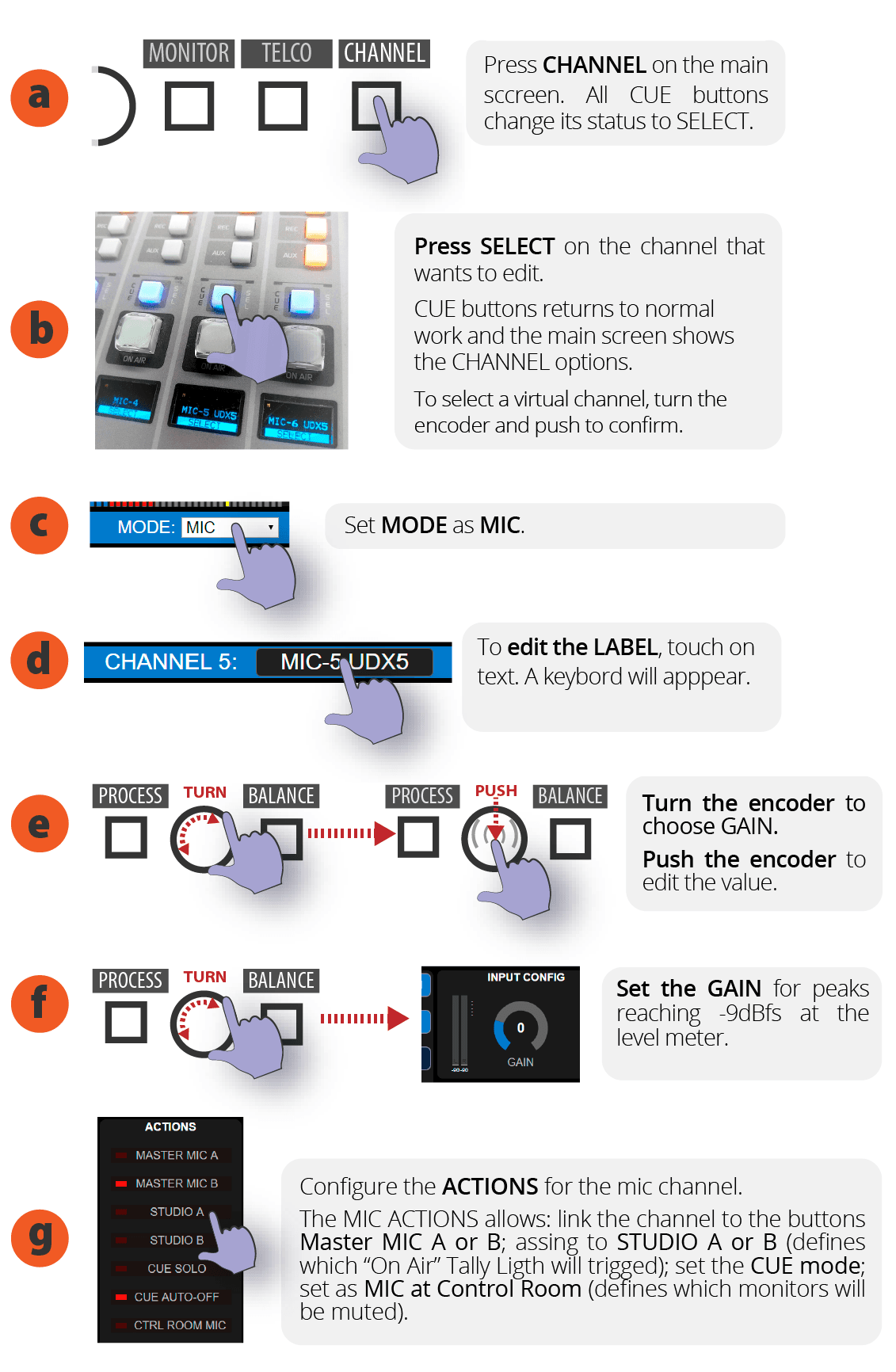

UDX2MIC channel configuration
TO PERMANENTLY STORE THE SETTINGS, SAVE THE SCENE.
